In the industrial sector, biomass boilers are also essential equipment. They are widely used in industries such as food processing, agriculture, textiles, papermaking, and wood processing. When upgrading or installing biomass heating systems, many companies face the challenge of selecting the right boiler type: vertical or horizontal? Although both use biomass fuel to generate steam or hot water, there are certain differences in terms of structural design, installation space, fuel compatibility, and suitable applications.

I. Key Differences:

(1) Footprint and Space Layout

• Vertical: The compact vertical design has a small footprint, making it suitable for factories or workshops with limited space.

• Horizontal: Longer and wider in size, with a larger footprint, requiring a spacious boiler room.

(2) Evaporation Capacity and Pressure Range

• Vertical: Typically suitable for small- to medium-sized thermal energy demands (generally below 1–2 t/h or within lower pressure ranges).

• Horizontal: Specifically designed for medium- to large-scale industrial evaporation and hot water applications (ranging from 2 t/h to 20+ t/h), capable of withstanding higher operating pressures and continuous heavy-load operation.

(3) Thermal Efficiency and Heat Transfer Area:

• Vertical: The heat transfer surface is relatively compact, resulting in slightly higher flue gas temperatures; thermal efficiency is generally slightly lower than that of horizontal models.

• Horizontal: Features a multi-pass design with a long flue gas path and large heat transfer area, providing higher thermal efficiency during continuous heavy-load operation.

(4) Operation and Maintenance:

• Vertical: The combustion chamber has a compact structure and requires periodic manual or simple ash removal to prevent coking on the small grate.

• Horizontal: Can be equipped with advanced automatic slag removal and feeding systems (such as reciprocating or chain grates), making them more suitable for burning biomass fuels with high ash content.

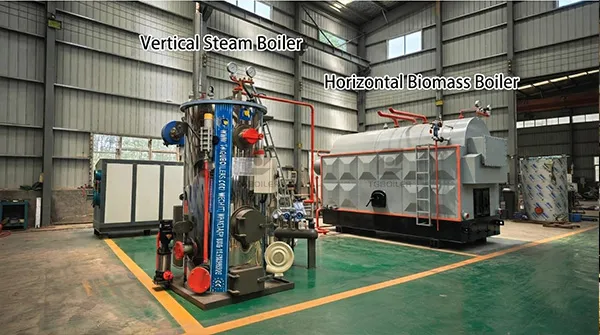

II.Horizontal vs. Vertical Biomass Boilers

III. How to Choose the Right Biomass Boiler for Your Factory?

When selecting a boiler, it is important to consider not only the boiler’s structure but also actual production needs.

If the following conditions apply, a horizontal biomass boiler may be a suitable option:

• The factory has high steam demand

• Long periods of continuous production are required

• Biomass fuels such as wood chips, rice husks, and agricultural waste are used

• A mechanical or automatic fuel feeding system is required

• The facility has sufficient space for boiler installation

If the following conditions apply, a vertical biomass boiler may be considered:

• Steam demand is relatively low

• Installation space at the facility is limited

• A more compact boiler system is desired

• The boiler is primarily used for small-scale production or heating

Although horizontal and vertical biomass boilers differ in structure, each has its own advantages.

Vertical biomass boilers are generally better suited for small-capacity, low-tonnage applications and locations with limited installation space;

horizontal biomass boilers, on the other hand, are better suited for medium- to large-capacity industrial production, particularly for medium- to large-scale factories with high steam demand that require continuous operation.

When selecting a biomass boiler, factories must comprehensively consider factors such as steam demand, biomass fuel type, installation space, operating hours, fuel feeding methods, and investment budget to identify the most suitable industrial boiler solution.

If you are unsure which type of biomass boiler is right for your facility, a professional boiler manufacturer can help you select the appropriate boiler type and capacity based on your fuel type, steam demand, and production process.
