In industrial production processes, boilers are critical thermal energy equipment. Choosing the right boiler not only affects production efficiency but also directly impacts a company’s energy consumption and operating costs.
However, when purchasing boilers, many companies still face the same common dilemma:
👉 Should they choose a steam boiler or a thermal oil boiler?

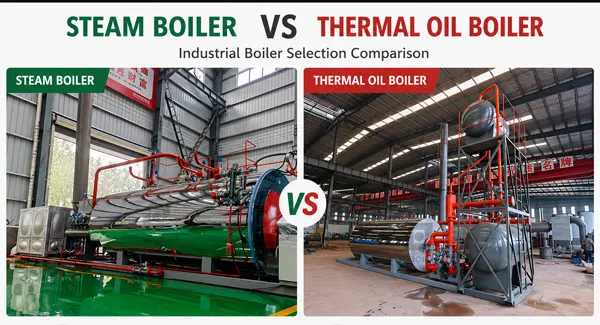

This article will compare the differences between steam boilers and thermal oil boilers from key aspects such as operating principles, temperature and pressure, and application industries, to help enterprises select the most suitable industrial boiler solution.
| Item | Steam Boiler | Thermal Oil Boiler |
| Working Principle | Generates steam by heating water. The steam is then distributed to process equipment for heating, sterilization, and production use. | Uses thermal oil as a heat carrier in a closed-loop system. Heat is transferred directly to equipment without producing steam. |
| Temperature | Typically up to 200°C | Up to 300°C or higher |
| Operating Pressure | Low to high pressure((regulated system)) | Low or medium pressure |
| Safety | • Classified as a pressure vessel • Requires strict water treatment & operation control • Potential pressure-related risks | • No steam pressure risk • More stable operation • Requires monitoring of oil condition (aging/leakage) |
| Energy Consumption | • Heat loss from blowdown & condensate • Higher overall system consumption | • Closed-loop circulation minimizes heat loss • More energy-efficient in high-temperature applications |
| Applications | • Food processing (sterilization, steaming) • Pharmaceuticals • Textile & dyeing • Paper industry • Laundry systems Best for: Processes that require steam | • Chemical processing (reactor heating) • Wood processing (hot press) • Asphalt heating • Rubber & plastics • Edible oil industry Best for: High-temperature processes without steam |
| System Complexity | • Includes water treatment, deaerator, condensate recovery • More complex installation & maintenance | • Simpler system (circulation pump + expansion tank) • Easier to operate and maintain |
In summary, both steam boilers and thermal oil boilers have their own advantages. Companies should select the most appropriate boiler type based on their actual production needs to truly achieve energy-efficient and high-performance operation.
TGBOILER specializes in the customization and export of industrial steam boilers and thermal oil boilers, and has provided stable and reliable thermal energy solutions to various industries worldwide.
📩 Send an inquiry now to receive a customized solution and quote!
Simply provide your requirements, and we will recommend the most suitable boiler model within 24 hours.
